Neptune™ All-in-One Outdoor dvLED Solution

For pricing, ordering information, or other product inquiries, contact us at info@neptuneTV.com or 630.375.5100.

Mount Type & Display Size: Pedestal Mount: 108" Pedestal Mount: 136" Pedestal Mount: 163" Wall Mount: 108" Wall Mount: 136" Wall Mount: 163"

Engineered for luxury outdoor living, the Neptune™ All-in-One Outdoor dvLED Solution delivers a truly elevated viewing experience by combining stunning visual performance with exceptional durability in a fully integrated system.

Designed to shine even in full sun, it produces brilliant brightness, rich contrast, and vibrant, true-to-life color for an immersive viewing experience in any outdoor setting. The all-weather, IP65-rated cabinet and protective coating ensure long-lasting performance against the elements. This complete solution unifies dvLED displays, a controller, and a dedicated bolt-down pedestal or wall mounting system — designed for effortless installation and refined integration into high-end residential environments. Available in 108", 136", and 163" screen sizes, it brings bold, cinematic outdoor entertainment to life with refined performance and reliability.

⚠ California Residents Warning: Cancer and reproductive harm - see www.P65Warnings.ca.gov for more information.

View full details

Showcase
Features
Specs
Supporting Documents

Cinematic Outdoor Entertainment, Engineered for Luxury Living

Transform your patio, poolside lounge, or rooftop terrace into a screening-room-caliber destination. The Neptune™ All-in-One Outdoor dvLED Solution pairs next-generation display technology with true all-weather durability, delivering a large-format outdoor display built to impress season after season.

Weatherproof Performance That Lasts All Year

Enjoy your favorite content rain or shine. With an IP65-rated cabinet and protective resin coatings, this outdoor display shrugs off moisture, dust, and humidity while operating flawlessly from -4°F to 140°F. It's engineered for year-round outdoor entertainment, so extreme temperatures never interrupt the experience.

100,000 hour lifespace, 3-year warranty, front-access service

Built to Last with Peace of Mind

Invest with confidence in a display designed for the long haul. A remarkable 100,000-hour lifespan and front-access serviceability keep your large-format outdoor display running beautifully for years. Backed by a best-in-class 3-year warranty, your investment is protected from day one.

Brilliant Clarity, Even in Direct Sunlight

See every detail with stunning precision, no matter the time of day. A brightness level of 4,500 nits cuts through harsh sun, while a 12,000:1 contrast ratio delivers deep blacks and vivid, true-to-life color. With a 178° viewing angle, every guest enjoys a perfect picture from any seat.

Advanced MIP Technology for richer color and enhanced durability

Next-Generation MicroLED Picture Technology

Experience premium display performance without the flagship price tag. Advanced MIP (MicroLED in Package) technology brings exceptional brightness, richer color, and superior durability to your outdoor space. It's cinema-grade imagery made practical.

One Complete System, Zero Guesswork

Skip the complexity of pieced-together custom builds. Every solution arrives as a single, integrated package with the display, mounting structure (bolt-down pedestal mount or wall mount), cabling, and controller included. This all-in-one design means faster installation and a clean, seamless finish that complements your premium architecture.

Grand-Scale Sizes for Any Space

Make a statement that fits your space perfectly. Available in three commanding sizes – 108", 136", and 163" – with crisp 1920 x 1080 resolution, this outdoor entertainment system scales to suit any architecture. From intimate patios to sweeping terraces, there's a size built for your vision.

Ready to elevate your outdoor living?

The Neptune™ All-in-One Outdoor dvLED Solution brings bold, cinematic entertainment to your backyard – engineered for the demands of luxury living.

Outdoor living space with a large screen, colorful furniture, and sunset view.

Modern outdoor space with a pool, lounge chairs, and outdoor dvLED display.

Outdoor seating area with a large dvLED displaying over the ocean.

Fully integrated solution includes everything needed for a streamlined installation — dvLED cabinets, cabling, controller, receiving cards, and a bolt-down pedestal mount or wall mount
Advanced display technology delivers exceptional resolution, deeper contrast, and rich, true-to-life color for a consistently immersive viewing experience
Durable, protective resin-coatings help safeguard the dvLED display against moisture, dust, and environmental wear, ensuring reliable performance outdoors
All-Weather Rated: IP65 (Cabinet), IP54 (Integrated Controller)
Operating Temperature Range: -4°F to 140°F (-20°C to 60°C)
Advanced MIP display technology helps reduce overall system cost without compromising performance
Up to 4,500 nits of brightness ensures clear, vibrant viewing even in direct sunlight
Energy-efficient design delivers high brightness while minimizing power consumption
Enhanced thermal performance helps keep the display cooler for long-term reliability
Front-access design allows for easy service and maintenance
Best-in-class 3-year warranty

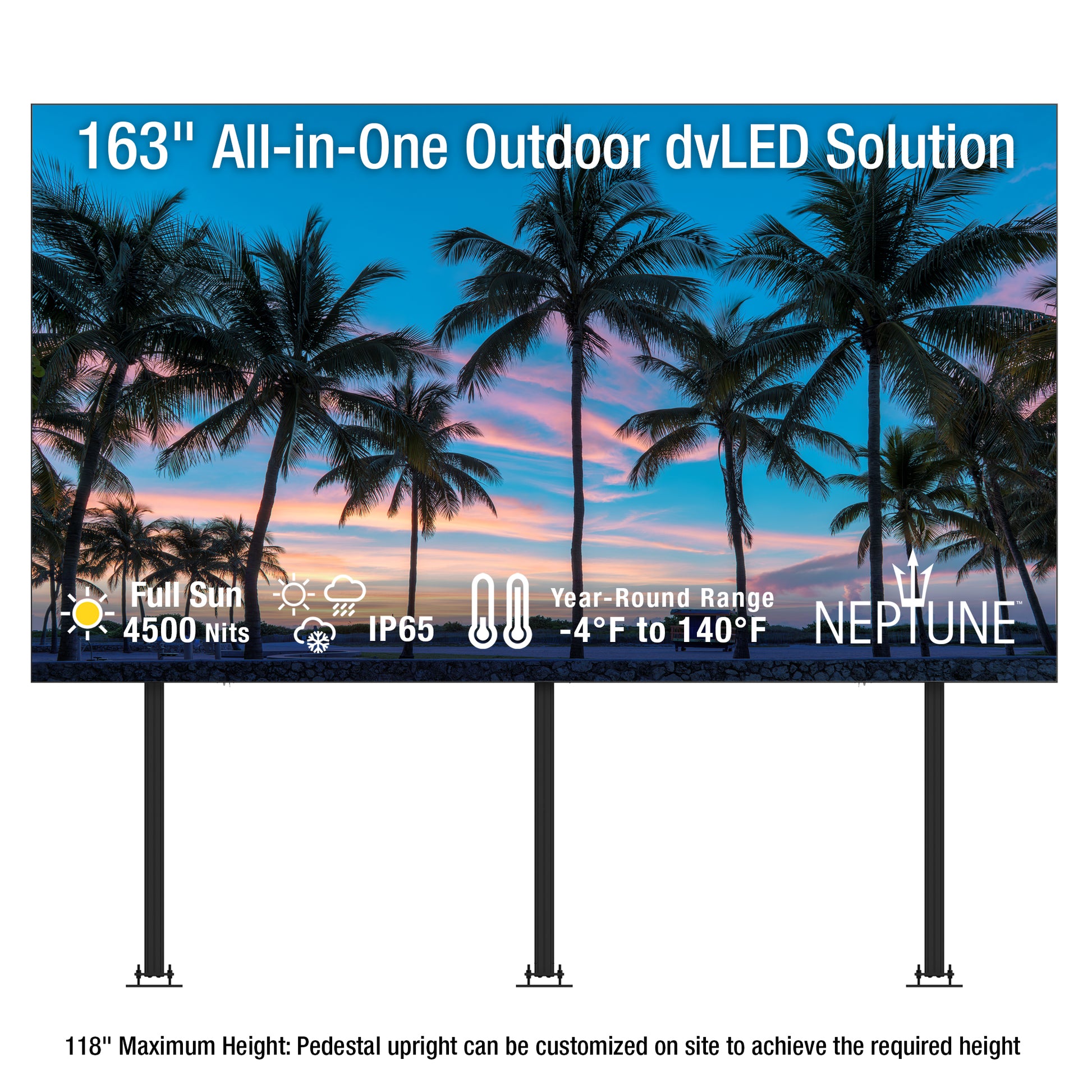

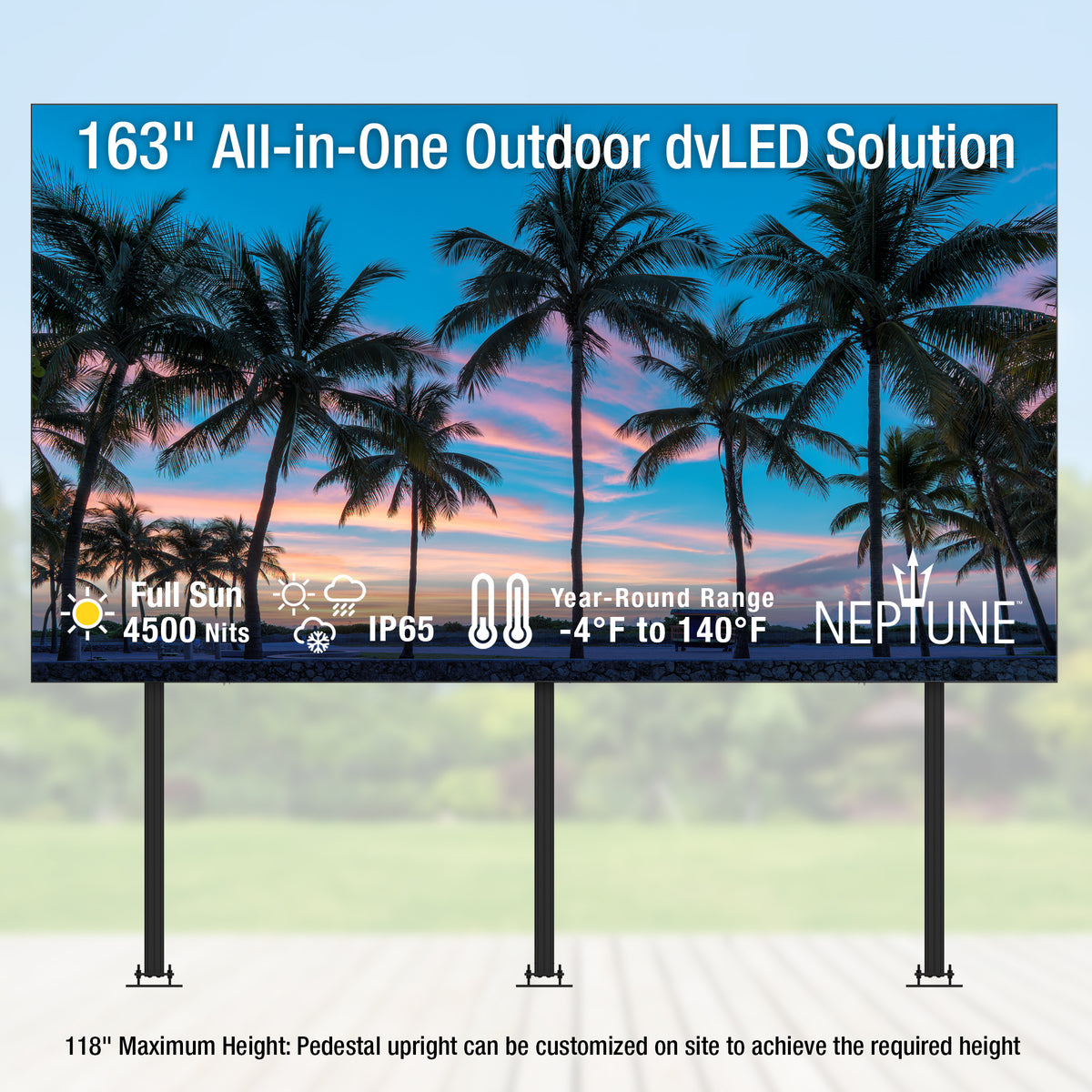

Bolt-down Pedestal Mount: Pedestal upright can be customized on site to achieve the required height (118" maximum height)

Warranty


Warranty	3 Years

LED Display Specifications


Model Numbers	NTLED108-WM NTLED136-WM NTLED163-WM NTLED108-BD NTLED136-BD NTLED163-BD
Screen Size	NTLED108-WM/BD: 108" NTLED136-WM/BD: 136" NTLED163-WM/BD: 163"
Pixel Pitch	NTLED108-WM/BD: 1.2mm NTLED136-WM/BD: 1.5mm NTLED163-WM/BD: 1.8mm
Max. Power Consumption	NTLED108-WM/BD: 2.78 kW NTLED136-WM/BD: 3.34 kW NTLED163-WM/BD: 4.79 kW
Avg. Power Consumption	NTLED108-WM/BD: 0.93 kW NTLED136-WM/BD: 1.13 kW NTLED163-WM/BD: 1.61 kW
Panel Array	NTLED108-WM/BD: 4 x 4 NTLED136-WM/BD: 5 x 5 NTLED163-WM/BD: 6 x 6
Driver IC	NTLED108-WM/BD: ICND2270 NTLED136-WM/BD: DP3369S NTLED163-WM/BD: DP3369S
Screen Dimension (W x H)	NTLED108-WM/BD: 94.49" x 53.15" (2400 x 1350mm) NTLED136-WM/BD: 118.11" x 66.44" (3000 x 1687.5mm) NTLED163-WM/BD: 141.73" x 79.72" (3600 x 2025mm)
Screen Weight	NTLED108-WM/BD: 317.47lb (144kg) NTLED136-WM/BD: 456.36lb (207kg) NTLED163-WM/BD: 628.32lb (285kg)
Screen Resolution	1920 x 1080
Panel Resolution	NTLED108-WM/BD: 480 x 270 px NTLED136-WM/BD: 384 x 216 px NTLED163-WM/BD: 320 x 180 px
Panel Size (W x H x D)	600 x 337.5 x 50mm
Pixel Module Resolution	NTLED108-WM/BD: 240 x 135 px NTLED136-WM/BD: 192 x 108 px NTLED163-WM/BD: 160 x 90 px
Pixel Module Size (W x H x D)	300 x 168.75 x 14.5mm
Lamp Type	MIP
Receiving Card	K5+
Input Voltage	110-240V
Storage Temperature	-22°F to 176°F (-30°C to 80°C)
Working Temperature	-4°F to 140°F (-20°C to 60°C)
Working Humidity	10% to 90% RH
Max. Brightness	4,500 nit
Max Brightness	12,000:1
Viewing Angle	178°
Color Bit	14 bit
Refresh Rate	3840Hz
IP Rating	IP65 (Cabinet), IP54 (Integrated Controller)
Lifespan	100,000 Hours
Maintenance	Front Accessibility

Controller Specifications


Controller	Colorlight CM2KS v1.4
Operating System	Android 13
Video Inputs	HDMI 2.0 x3
Video Outputs	HDMI 2.0 x1
Audio Outputs	3.5mm x1 / SPDIF x1
Wireless Support	Wi-Fi 6, Bluetooth v5.2
Wireless Screen Mirroring	WIN / IOS / Android
USB A & USB C	Supports USB Disk, Camera, Mouse, Keyboard & other peripherals
Standby Low Power Mode	<0.5 W
Optimized Display Modes	Document Presentation (WRD, XCL, PPT), Remote Meetings & Video Playback
Storage Temperature	-13°F to 176°F (-25°C to 80°C)
Working Temperature	-4°F to 149°F (-20°C to 65°C)

NTLED-WM Packaging Specifications

NTLED108-WM
Packaging Size (W x H x D)	Case 1: 55.75" x 24.72" x 26.69" (1416 x 628 x 678mm) Case 2: 32.13" x 28.66" x 30.63" (816 x 728 x 778mm) Case 3: 73.15" x 18.82" x 20.00" (1858 x 478 x 508mm) Case 4: 14.00" x 14.00" x 48.00" (355.6 x 355.6 x 1219.2mm)
Package Ship Weight	658.27lb (298.59kg)
Package UPC Code	735029362951
Package UPC Code	dvLED Tiles, Wall Mounting System, Controller, Spare Modules, Spare Rx Cards, Spare Power Supplies, Spare Hub Boards & Maintenance Tool

NTLED136-WM
Packaging Size (W x H x D)	Case 1: 55.75" x 24.72" x 26.69" (1416 x 628 x 678mm) Case 2: 32.13" x 28.66" x 30.63" (816 x 728 x 778mm) Case 3: 33.31" x 32.20" x 26.69" (846 x 678 x 818mm) Case 4: 73.15" x 18.82" x 20.00" (1858 x 478 x 508mm) Case 5: 14.00" x 14.00" x 48.00" (355.6 x 355.6 x 1219.2mm)
Package Ship Weight	922.55lb (418.46kg)
Package UPC Code	735029362982
Package UPC Code	dvLED Tiles, Wall Mounting System, Controller, Spare Modules, Spare Rx Cards, Spare Power Supplies, Spare Hub Boards & Maintenance Tool

NTLED163-WM
Packaging Size (W x H x D)	Case 1: 55.75" x 24.72" x 26.69" (1416 x 628 x 678mm) Case 2: 55.75" x 24.72" x 26.69" (1416 x 628 x 678mm) Case 3: 32.13" x 28.66" x 30.63" (816 x 728 x 778mm) Case 4: 32.13" x 28.66" x 30.63" (816 x 728 x 778mm) Case 5: 96.77" x 18.82" x 20.00" (2458 x 478 x 508mm) Case 6: 14.00" x 14.00" x 48.00" (355.6 x 355.6 x 1219.2mm)
Package Ship Weight	1225.15lb (555.72kg)
Package UPC Code	735029362999
Package UPC Code	dvLED Tiles, Wall Mounting System, Controller, Spare Modules, Spare Rx Cards, Spare Power Supplies, Spare Hub Boards & Maintenance Tool

NTLED-BD Packaging Specifications

NTLED108-BD
Packaging Size (W x H x D)	Case 1: 55.75" x 24.72" x 26.69" (1416 x 628 x 678mm) Case 2: 32.13" x 28.66" x 30.63" (816 x 728 x 778mm) Case 3: 73.15" x 18.82" x 20.00" (1858 x 478 x 508mm) Case 4: Coming Soon
Package Ship Weight	Coming Soon
Package UPC Code	735029362968
Package UPC Code	dvLED Tiles, Bolt-Down Pedestal Mounting System, Controller, Spare Modules, Spare Rx Cards, Spare Power Supplies, Spare Hub Boards & Maintenance Tool

NTLED136-BD
Packaging Size (W x H x D)	Case 1: 55.75" x 24.72" x 26.69" (1416 x 628 x 678mm) Case 2: 32.13" x 28.66" x 30.63" (816 x 728 x 778mm) Case 3: 33.31" x 32.20" x 26.69" (846 x 678 x 818mm) Case 4: 73.15" x 18.82" x 20.00" (1858 x 478 x 508mm) Case 5: Coming Soon
Package Ship Weight	Coming Soon
Package UPC Code	735029362975
Package UPC Code	dvLED Tiles, Bolt-Down Pedestal Mounting System, Controller, Spare Modules, Spare Rx Cards, Spare Power Supplies, Spare Hub Boards & Maintenance Tool

NTLED163-BD
Packaging Size (W x H x D)	Case 1: 55.75" x 24.72" x 26.69" (1416 x 628 x 678mm) Case 2: 55.75" x 24.72" x 26.69" (1416 x 628 x 678mm) Case 3: 32.13" x 28.66" x 30.63" (816 x 728 x 778mm) Case 4: 32.13" x 28.66" x 30.63" (816 x 728 x 778mm) Case 5: 96.77" x 18.82" x 20.00" (2458 x 478 x 508mm) Case 6: Coming Soon
Package Ship Weight	Coming Soon
Package UPC Code	735029363002
Package UPC Code	dvLED Tiles, Bolt-Down Pedestal Mounting System, Controller, Spare Modules, Spare Rx Cards, Spare Power Supplies, Spare Hub Boards & Maintenance Tool

Product Line Brochure

NTLED-BD Models

Sell Sheet

User Guide

(Coming Soon)

108" Drawing

(Coming Soon)

136" Drawing

(Coming Soon)

163" Drawing

(Coming Soon)

NTLED-WM Models

Sell Sheet

User Guide

108" Drawing

136" Drawing

163" Drawing
